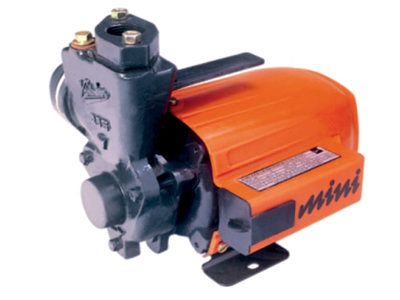

These are single and three phase, end suction monobloc pumps with portability. These are noiseless pumps and available in stainless steel. High head and discharge makes this pump suitable for a wide variety of uses.
- Total head - 40 metres
- Self priming up to 3 metres
- Can withstand wide voltage fluctuations from 180 to 240 Volts
- Thermal Overload Protector (TOP), protects motor from burning out
- Chrome plated shaft to avoid rust problems
- Motor with IP-44 protection and class 'B' insulation
- Shielded ball bearings - no need for external lubrication
- Lightweight pump for easy handling
- Available in single and three phase options
- Water supply for domestic use in bungalows, apartments, hotels, hospitals, farmhouses etc.
- Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens
Technical Specifications
- Head : 10 to 40 metres
- Capacity : 3000 to 200 LPH
- Power Rating : 0.75 kW (1.0 HP)
- Voltage Range : 180 to 240 Volts – single phase, and 300 to 440 Volts - three phase
Material of Construction
- Impeller : H. T. Brass
- Delivery Casing : Cast Iron
- Motor Body : Aluminium
- Shaft : Carbon Steel (Chrome Plated)
