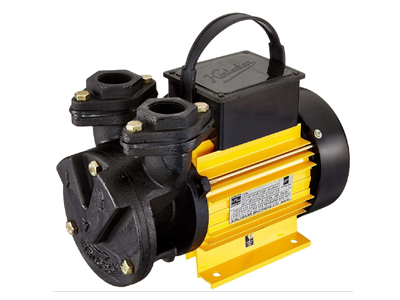

Uniquely designed pump with extra heavy duty construction for trouble free performance and durability.

  • Self-priming up to 3.0 meters at mean seal level.
  • Motor can withstand with wide voltage fluctuation from 180- 240Volts
  • Unique Motor design- capacitor start & run, eliminating centrifugal switch.
  • ‘B’ class of insulation.
  • Specially processed steel shaft for corrosion resistance & durability.
  • Fitted with high quality & long life mechanical seal.
  • Fitted with Thermal Overload Protector (TOP) for safety of Motor.
  • Both Side Shielded ball bearing, no need of external lubrication.
  • Sturdy & rigid construction.
  • Pump casing made of closed grains cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses.
  • Brass impeller is used to give trouble free services
  • Water supply for domestic use in bungalows, apartments, hotels, farmhouses etc.
  • Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens

Technical Specifications

  • Head : 5 to 50 meters
  • Capacity : 2560 to 140 LPH
  • Power Rating : 0.37 Kw/ 0.5 HP to 0.75 Kw/ 1.0 HP
  • Voltage Range : 180 to 240 Volts( 1 phase)

Material of Construction

  • Impeller : Brass
  • Pump shaft : Carbon steel
  • Delivery Casing : Cast Iron
  • Mounting casing : Cast Iron
  • Motor Body : Aluminum
  • Cover NDE : Cast Iron
  • Mechanical seal : Carbon ceramic
