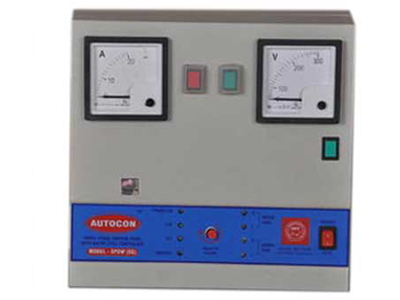

Singal phase control panel with water level controller electronic suitable for Submersible Open Well and Monoblock Pump Controlling both Suction and Delivery Tank, Can work on both Float/SS Sensor.

Suitable for:

Submersible, Open Well and Moloblock Pump Controlling both Suction and Delivery Tank, Can operate on both Float/SS Sensor

Product Details

Brand Autocon
Input Voltage 230 V AC
Current Capacity 18 A Max
Power 1 HP to 5 HP
Phase Single Phase
Weight 4 kg
Modal TPDwater1W-1S

Technical Specifications

HP Running Capacitor Starting Capacitor
0.5 HP 25 Mfd 100/120 Mfd
0.75 HP 30 Mfd 100/120 Mfd
1 HP 36 Mfd 100/120 Mfd
1.5 HP 36+25 Mfd 120/150 Mfd
2 HP 36+36 Mfd 150/200 Mfd
