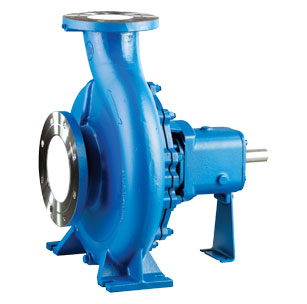

ECW SERIES – EN733 – END SUCTION PUMP

C.R.I. fire fighting pumps

Backed by experience of over six decades standing, state of art prototype facility, manufacturing expertise and of course a passion for quality, CRI pumps have often set the benchmark in providing reliable solutions as evident from its industrial pump ranges.

ECW Series - Reliable and high quality, Horizontal single stage, End suction, Centrifugal, Foot mounted pump designed as per EN 733 Standard, to pump water and other liquids with low contamination.

Pump Features

  • Optimized Hydraulics design
  • Common housing for gland packing & Mechanical seal versions
  • Engineered Bearing Frame
  • Ejecting bolts provision
  • Replaceable Wear rings
  • Contoured lock nut* with double flat and helical groove option
  • Water supply
  • All single phase motors are fitted with thermal motor protector
  • Heating & air conditioning system
  • Swimming Pools fountains
  • Food , Sugar, Paper, Pulp, Chemical Industries
  • Construction Industries
  • Power Plant
  • Steel , Water Supply
  • Irrigation
  • Pressure Boosting

Technical Specifications

  • Max. Flow :Upto 550 m3/Hr
  • Max. Head :Upto 100m
  • Max. Power :200 kW
  • Max. Speed :500 – 3500 rpm
  • Materials of Construction :CI, Bronze, SS

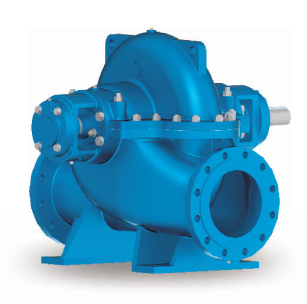

SCW SERIES – HORIZONTAL SPLIT CASE PUMP

C.R.I. fire fighting pumps

With an eye on the growing market for various types of pumps for different Industrial applications, CRI has developed a wide range of Rugged, Reliable and Efficient Pumps for different applications.

SCW Series – Reliability and high Quality, Horizontal single Stage, Between Bearing Pumps for high flow and head, designed as per manufacturer standard to pump water and other liquids with low contamination.

Pump Features

  • Air release valve
  • Top pull out casing design and Separate bearing housing
  • Replaceable Wear rings at both sides of impeller
  • Dynamically balanced double suction Low NPSH impeller
  • Common housing for gland packaging / Mechanical seal option
  • Options for single and double volute
  • Module design for maximum interchangeability of rotating units
  • Water supply
  • HVAC System
  • Mines | Refiners
  • Marine | Power Plant
  • Water Supply
  • Irrigation
  • Steel Plant

Technical Specifications

  • Max. Flow :Upto 2500 m3/Hr
  • Max. Head :Upto 170m
  • Max. Working Temp: Upto 104C
  • Max. Operating Data Inlet Size :Upto 500mm
  • Max. Outlet Size :1200mm
  • Materials of Construction :CI, Bronze
